Clutch cable Thwaites 4ton, Yanmar 4TNE88-EWA2


2 in stock (more available to order)

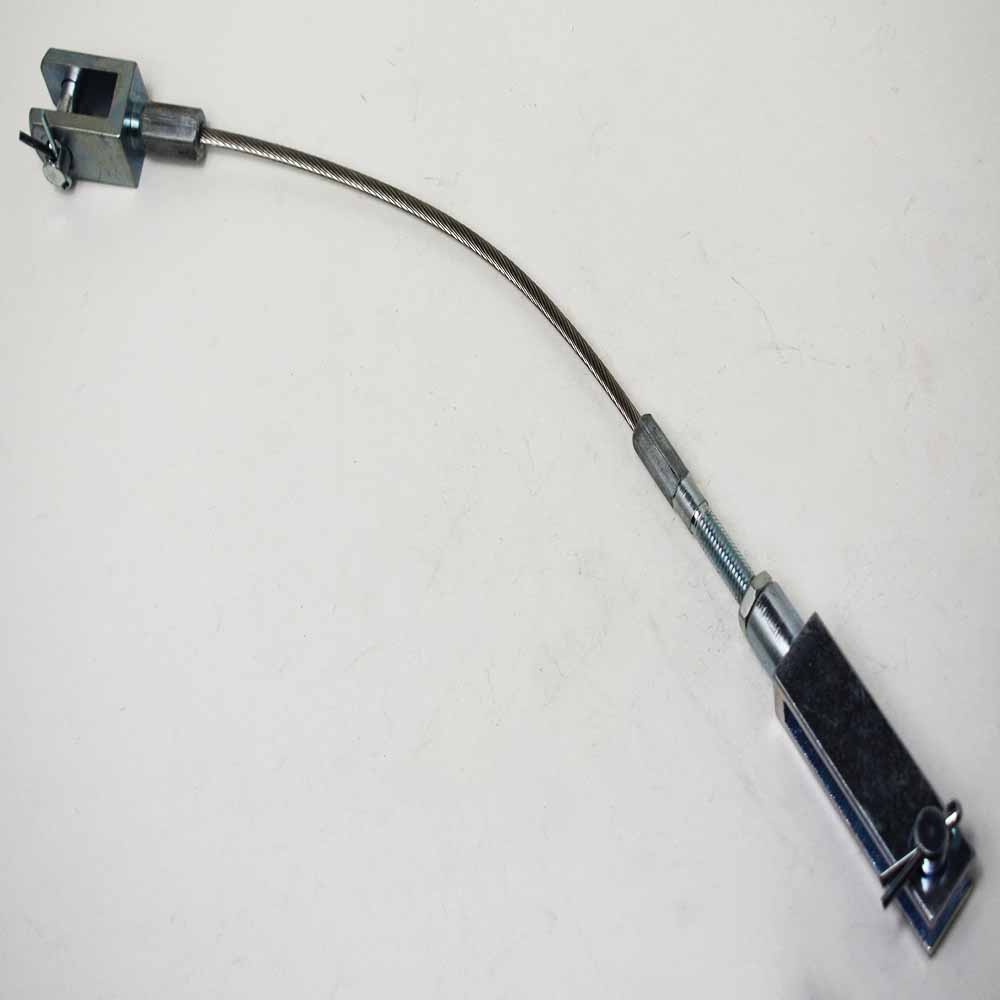

305mm / 12” Clutch cable for Thwaites dumper

(full description below)

2 in stock (more available to order)


To suit a 4 tonne Thwaites dumper MACH 240 and 245 fitted with a Yanmar 4TNE88-EWA2 engine.

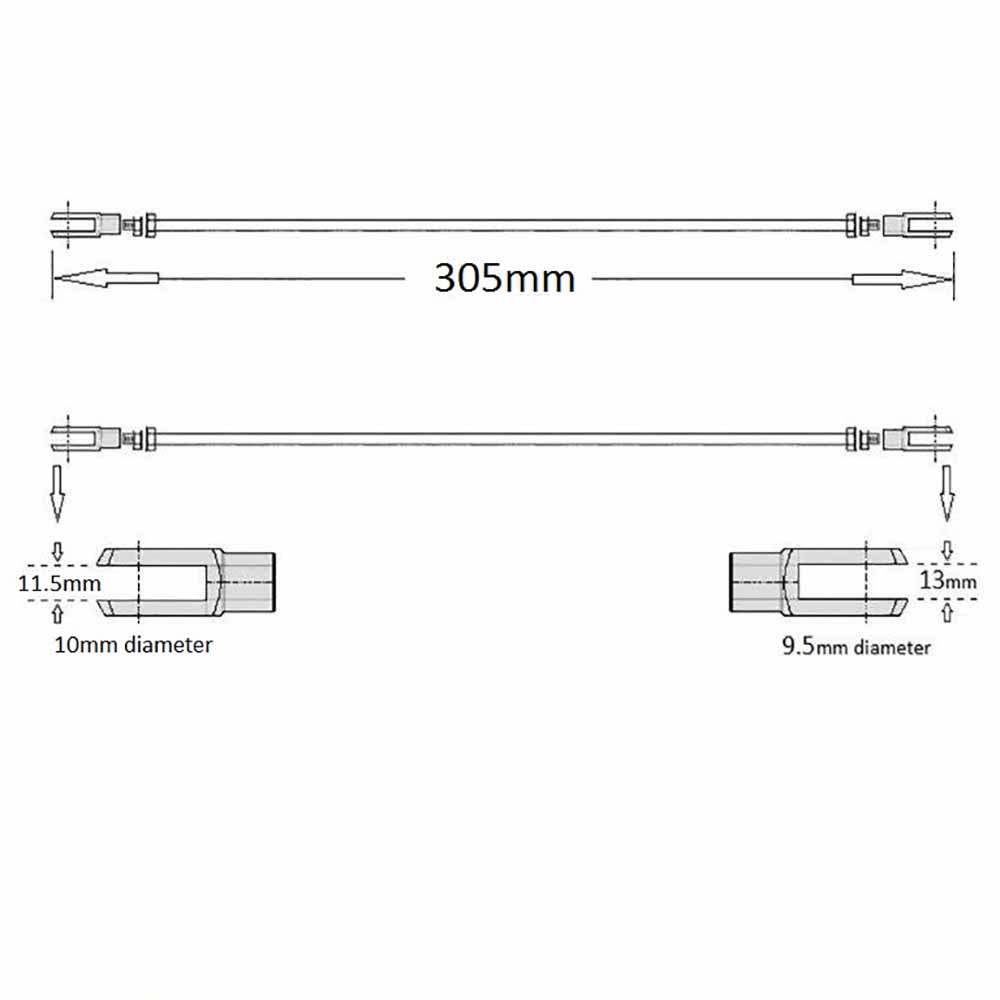

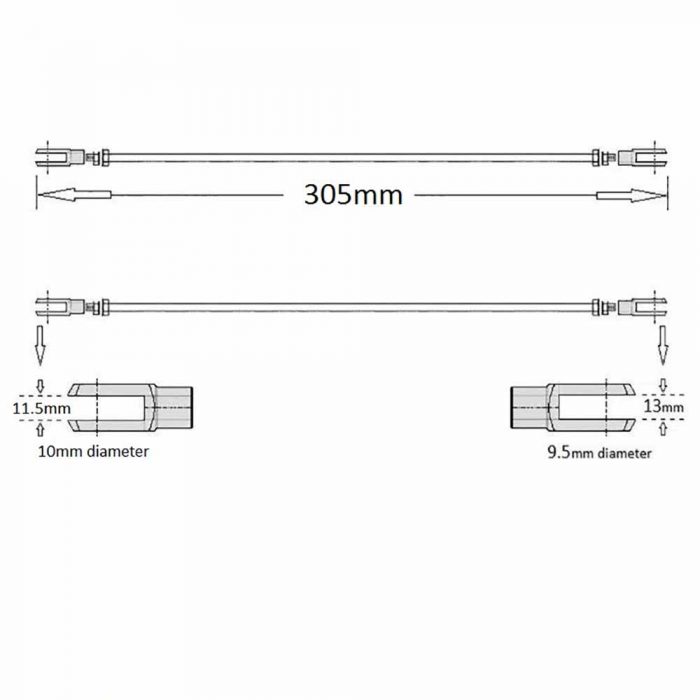

When fitted to dumper goes between the clutch pedal and drop arm on gearbox, the cable is approximately 305mm long with a fixed clevis that general goes to the gearbox drop arm and a M8 threaded bar with an adjuster clevis on the pedal side. There is no outer sleeve on this cable

The clutch cable links the pedal to the drop arm on the gearbox to engage the thrust bearing. Frayed or broken cables are dangerous and must be replaced.

Genuine Thwaites Parts

OEM No. 100682, T100682
