1380mm / 54” Forward & reverse cable for Terex HD1000 1 ton dumper with M15 1.5 pitch into lever housing.
(full description below)
If cable is M16 1.5pitch 52″ long use 8000-4569C
Foward & Reverse Cable HD1000 M15 x 1.5pitch 54″ long
£248.00
46 in stock (more available to order)
46 in stock (more available to order)
Description

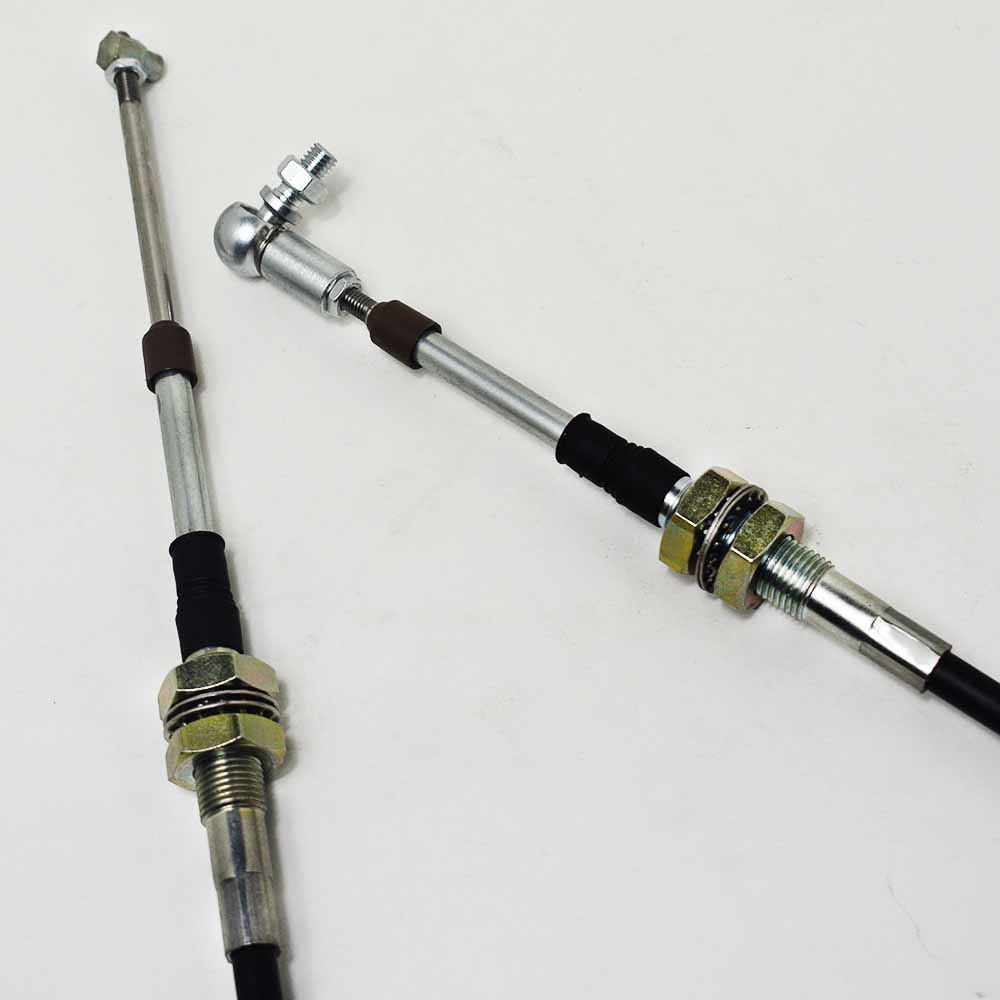

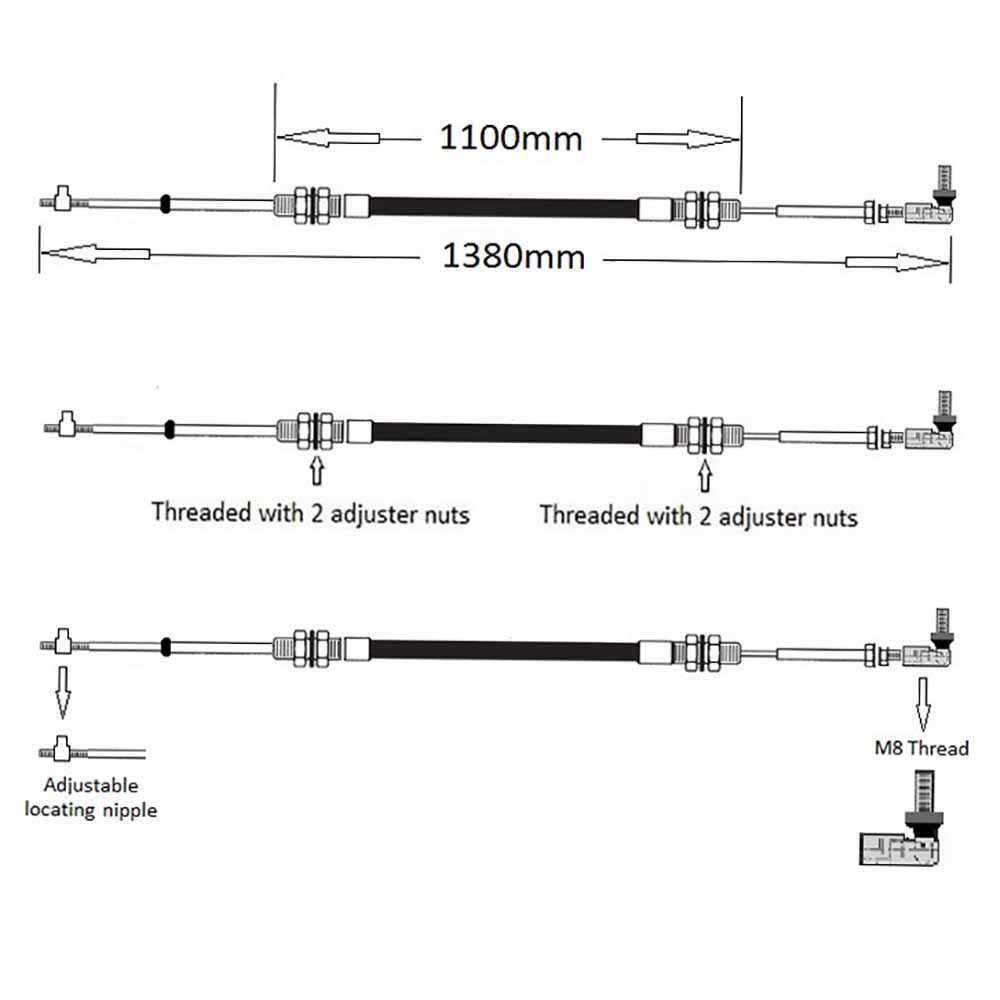

Cable general fits 1-ton hydrostatic Terex / Mecalac dumper HD850, HD1000, HD1200, TA0.8EH, TA1EH, TA1.2EH hand throttle dumper with M15 1.5 pitch into lever housing. The cable is approximately 1380mm long with a soldered nipple end which locates into the lever bracket and M8 Ball Joint the other end, the outer cable is approximately 1100mm long and threaded both ends with two adjuster nuts.
The Forward and reverse cable links the Lever to the pump controller. Frayed or broken cables are dangerous and must be replaced.
15951045C
These parts are PES parts and not manufactured by the original equipment manufacturer. Original Manufacturer name, part number and description are quoted for reference purposes only and are not intended to indicate or suggest that our replacement parts are made by the OE.
