Foward & Reverse Cable HD1000 M16 1.5pitch 52″


30 in stock (more available to order)

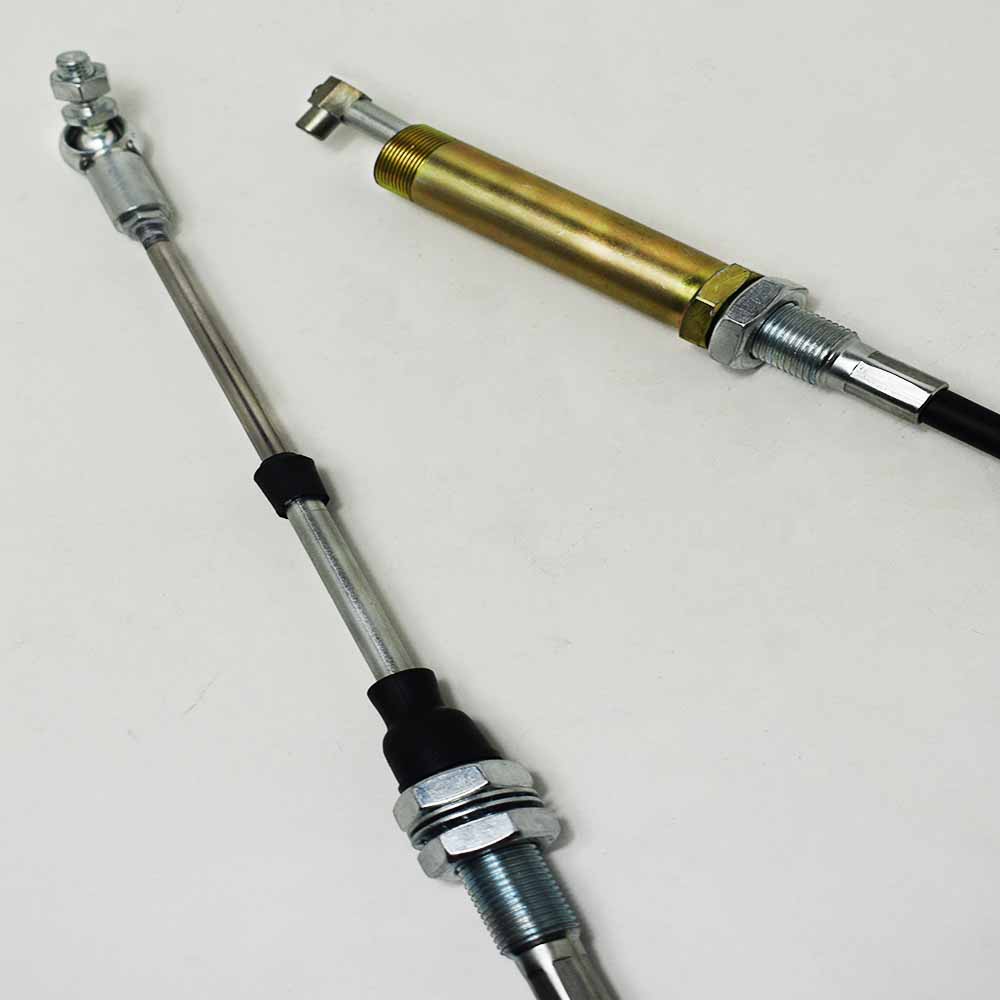

1330mm / 52” Forward & reverse cable for Terex HD1000 1 ton dumper with M16 1.5 pitch into lever housing.

(full description below)

If cable is M15 x 1.5pitch 54″ long use 1595-1045C

30 in stock (more available to order)

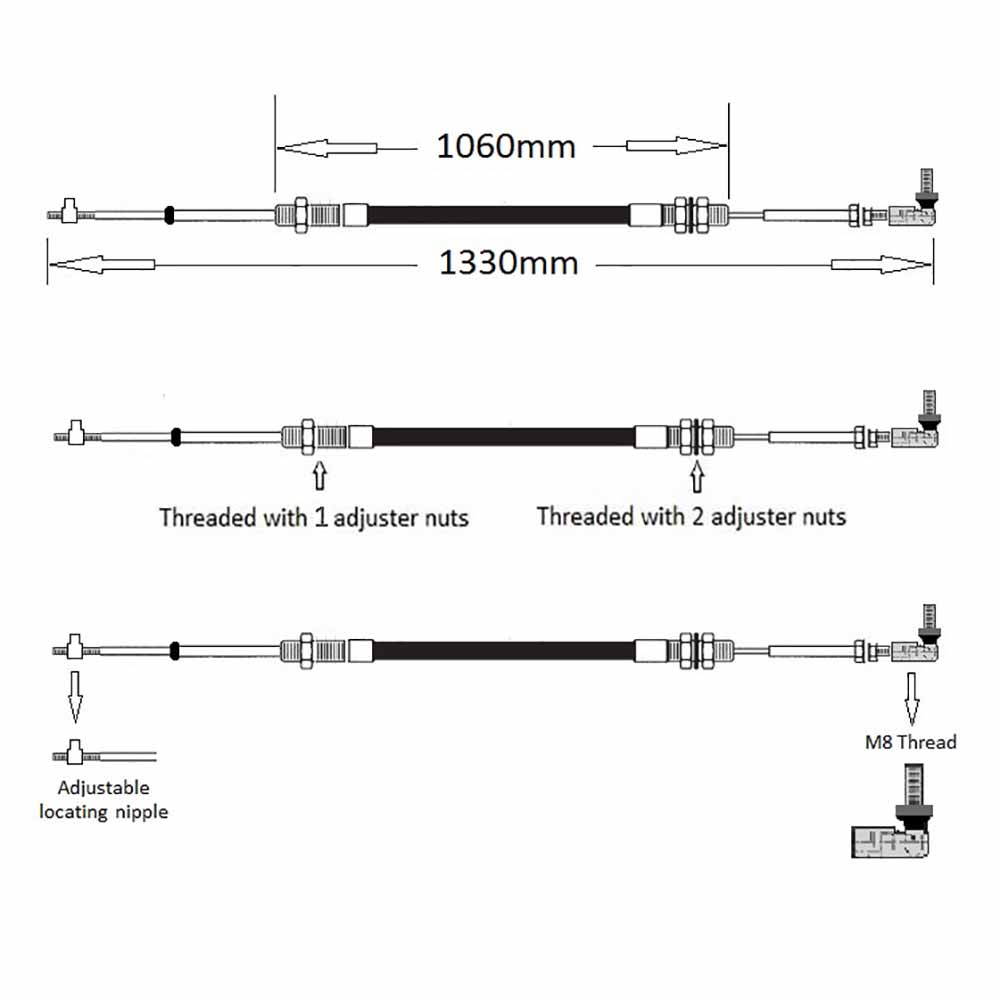

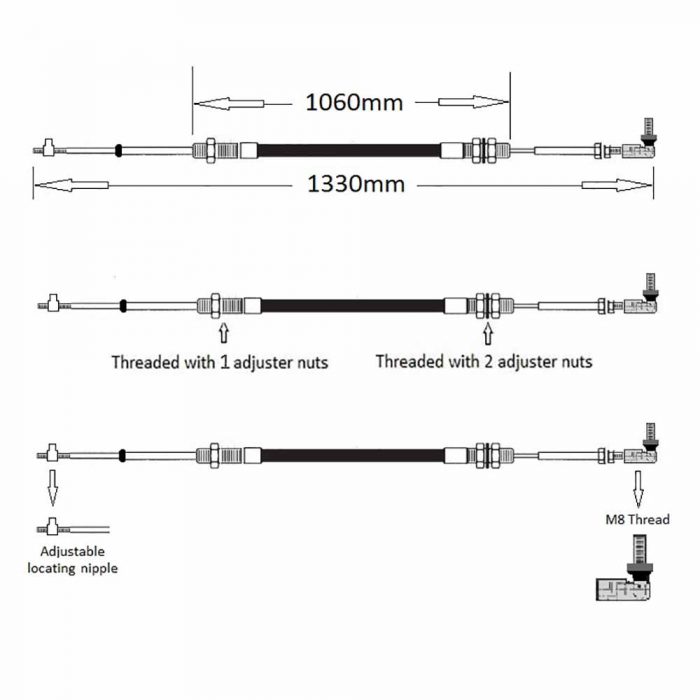

Cable general fits 1-ton hydrostatic Terex / Mecalac dumper HD850, HD1000, HD1200, TA0.8EH, TA1EH, TA1.2EH hand throttle dumper with M16 1.5 pitch into lever housing. The cable is approximately 1330mm long with a soldered nipple end which locates into the lever bracket and M8 Ball Joint the other end, the outer cable is approximately 1060mm long and threaded both the lever side has one adjuster nut and the pump side has two adjuster nuts.

The Forward and reverse cable links the Lever to the pump controller. Frayed or broken cables are dangerous and must be replaced.


These parts are PES parts and not manufactured by the original equipment manufacturer. Original Manufacturer name, part number and description are quoted for reference purposes only and are not intended to indicate or suggest that our replacement parts are made by the OE.
