Handbrake cable Thwaites 5-7ton approx 06′ onwards & 9-10ton 02’onwards

£50.28

54 in stock (more available to order)

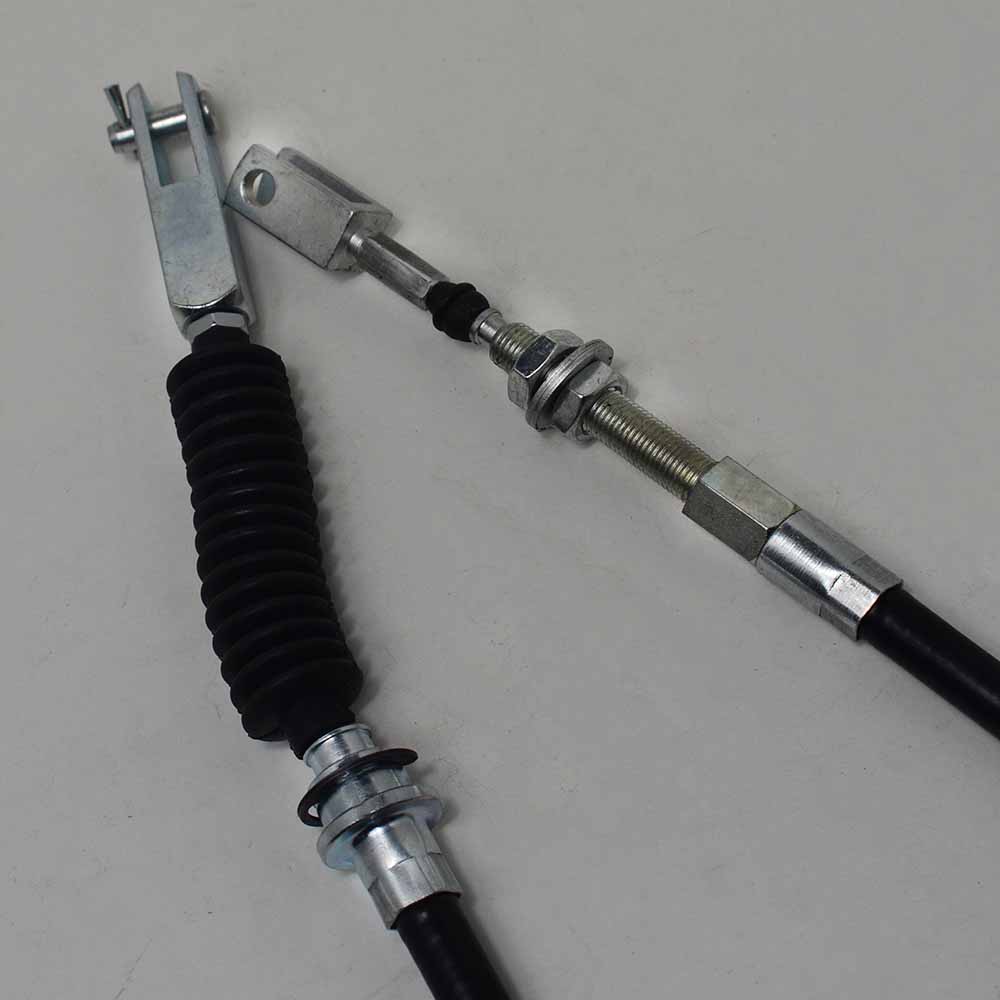

1440mm / 56.5” long Handbrake cable for Thwaites 5-7 ton dumper 2005 onwards and 9-10 ton dumper 2002 onwards.

54 in stock (more available to order)

Description

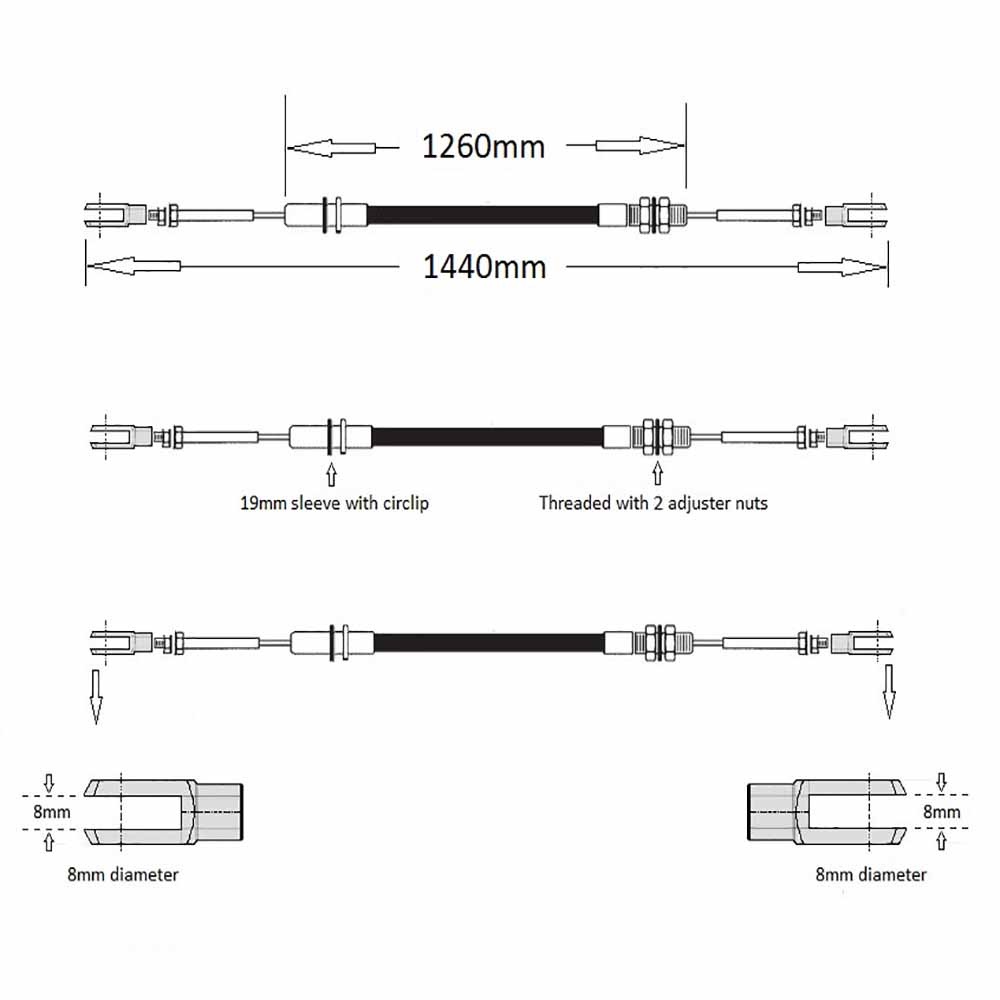

Cable general fits Thwaites 5-7 ton dumper 2005 onwards and 9-10 ton dumper 2002 onwards when fitted with a lockable over-centre handbrake lever and cable goes to calliper on rear of transmission. Cable is approximately 1440mm long with a fixed clevis to the handbrake lever and an adjustable clevis to the handbrake calliper; the outer sleeve is approximately 1260mm long from the tip of the thread with two adjuster nuts to the tip of 19mm metal sleeve complete with fixing cir-clip the other end.

The handbrake cable links the handbrake lever to the parking brake to stop the vehicle from rolling away. Frayed or broken cables are dangerous and must be replaced

Genuine Thwaites part

OEM number 101070, T101070

for Mach 865 / 866 – 6 ton Thwaites dumper with Deutz TCD3.6L4-70KW-DOC engine

+ Various other Thwaites dumpers
