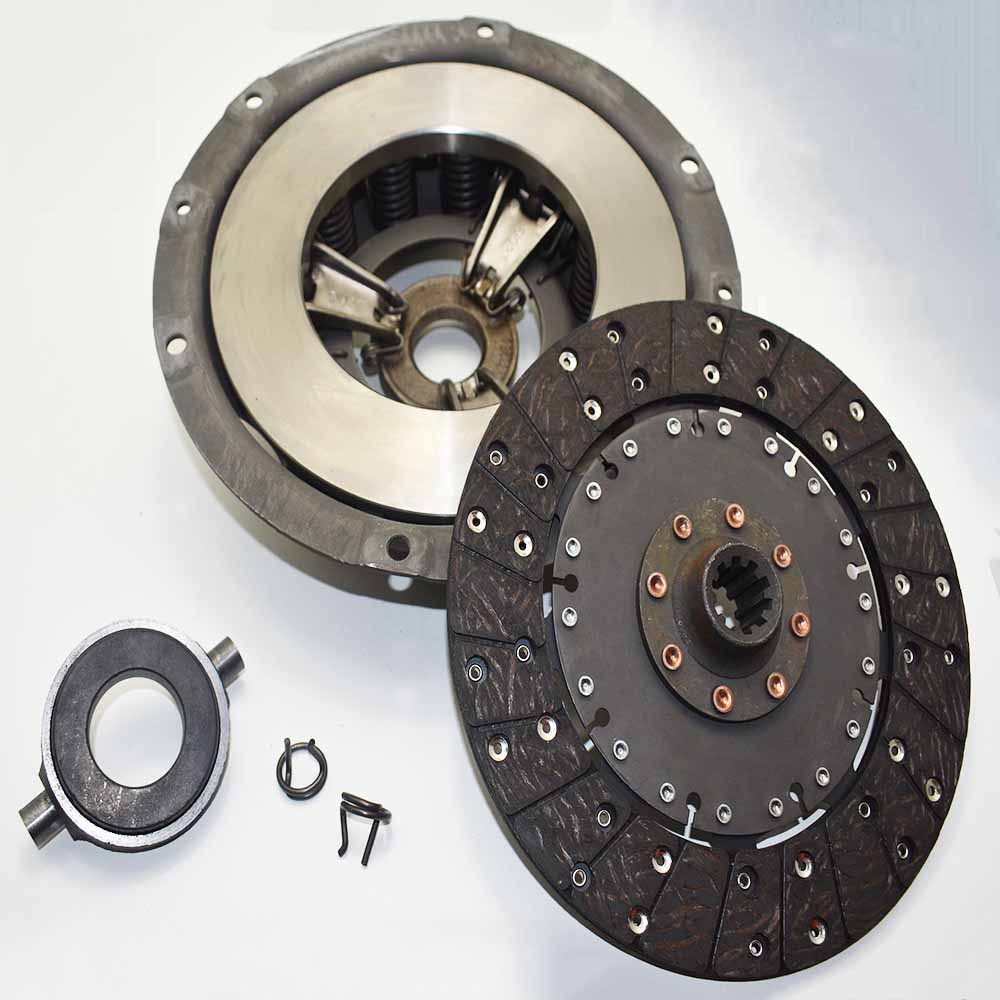

9” Clutch Assembly (clutch plate has 10 splines)

£155.00

9” Clutch Assembly (clutch plate has 10 splines)

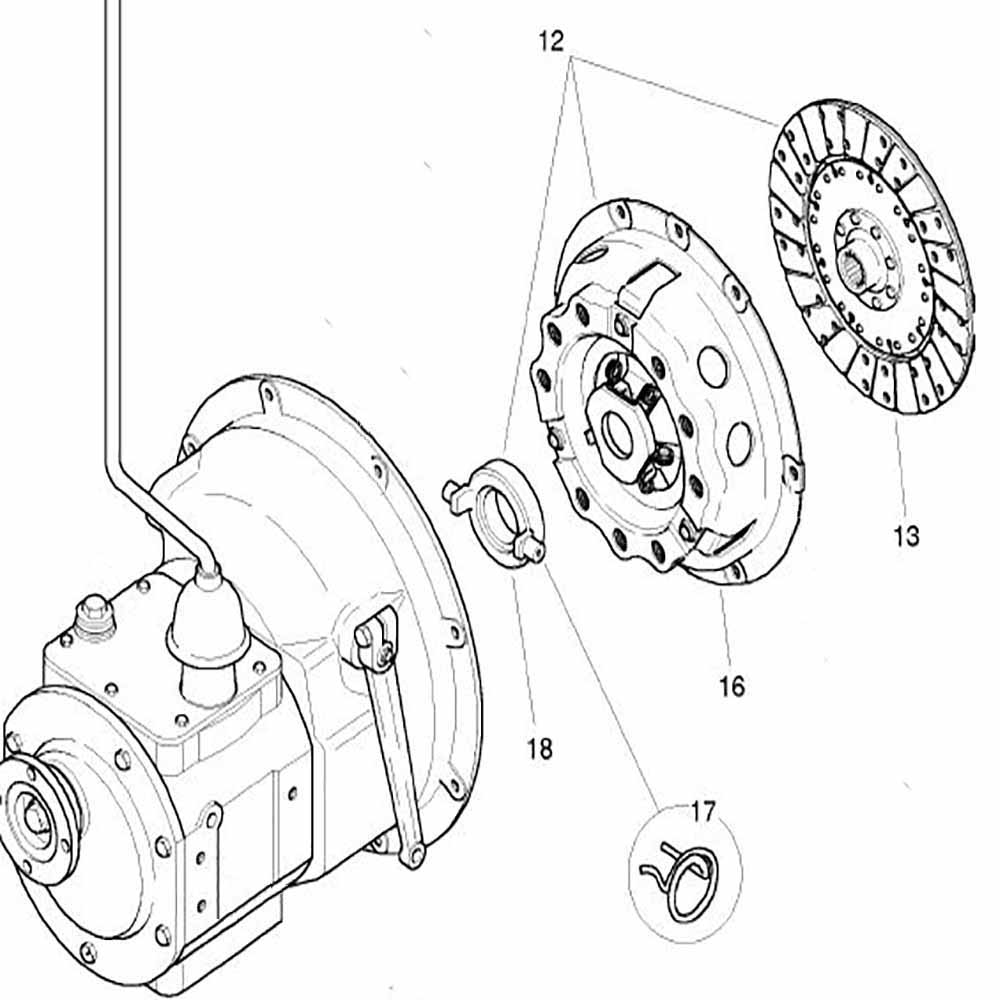

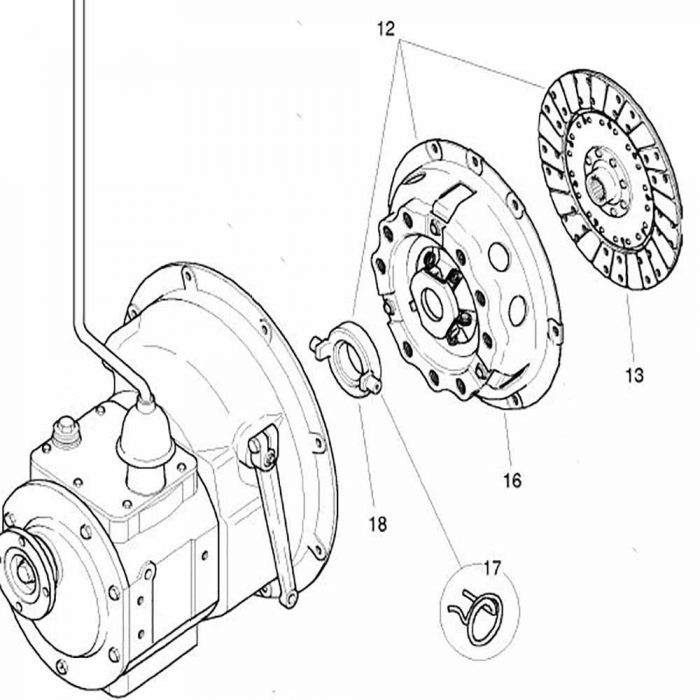

Kit includes Ref 1 x 13, 1 x 16, 2 x 17 & 1 x 18 on Diagram

Fits Thwaites, Benford, Barford, Terex & Winget 4WD 2 – 3 ton dumpers.

(not Kubota or Yanmar engines)

Kit Includes:



Product Quantity

Bearing retaining spring

211 in stock (more available to order)

2

9" Dumper clutch cover

78 in stock (more available to order)

1

9" Dumper clutch plate

76 in stock (more available to order)

1

Carbon thrust bearing

310 in stock (more available to order)

1

Description

OEM part numbers include

Thwaites 7095, 12171, 12172, 6551

Benford / Terex 56827, 45692-95, 41628, 46890, 1583-1518, 800-44444, 109109, HTL0220

Winget 10598A03, 10597A02, 10579A0101, 10579A01

Barford SX626011, MX626016/2, SX626031-01, SX626009



These parts are PES parts and not manufactured by the original equipment manufacturer. Original Manufacturer name, part number and description are quoted for reference purposes only and are not intended to indicate or suggest that our replacement parts are made by the OE.
