Description

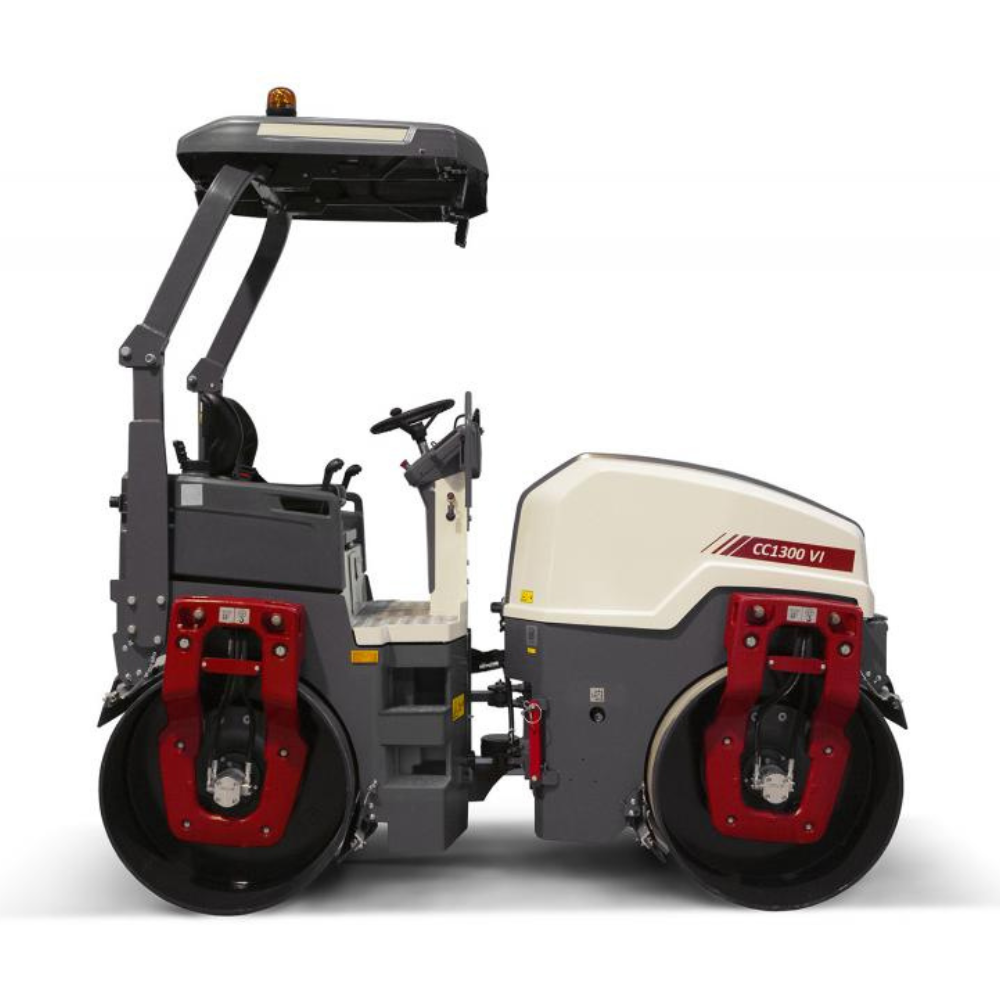

The Dynapac CC1300 VI is a modern twin drum vibratory roller designed for efficient, high-quality asphalt compaction on medium-sized road construction and maintenance projects. It is widely used for finishing layers on urban roads, residential streets, car parks, cycle paths, and general paving work where surface smoothness and consistent density are essential.
This model builds on the proven CC1300 platform, offering improved engine efficiency, refined vibration control, and enhanced operator comfort. Its twin steel drum configuration ensures uniform compaction across the full working width, while the articulated steering system provides excellent manoeuvrability in tight or confined job sites.
The CC1300 VI is particularly valued as a finishing roller, delivering a smooth asphalt surface with consistent texture and density. Its hydrostatic drive system ensures precise control over speed and direction, while the dual vibration system allows operators to adjust compaction performance depending on material type and job conditions.
Operator comfort is also a key feature, with an ergonomic platform layout, excellent visibility to drum edges, and intuitive controls designed for long working shifts.
Key Specifications
Dimensions & Weight
- Operating weight: approx. 3,900 kg
- Maximum operating weight: up to approx. 4,800 kg
- Drum width (compaction width): 1,300 mm
- Drum diameter: approx. 880 mm
- Overall length: approx. 2,850 mm
- Overall width: approx. 1,425 mm
- Ground clearance: approx. 190 mm
- Turning radius (outside): approx. 4,330 mm
Engine & Power
- Engine type: Kubota diesel engine (multiple variants depending on emission standard)
- Power output: approx. 35–37 kW (48–50 hp)
- Fuel tank capacity: approx. 60 litres
- Emission compliance: Tier IIIA / Tier IV / Stage V (depending on version)
Performance
- Travel speed: up to approx. 9 km/h
- Gradeability: up to approx. 42%
- Steering angle: ±30°
- Vibration system: dual drum vibration for uniform compaction
- Drive system: hydrostatic transmission for smooth control
Compaction System
- High-frequency vibration system for asphalt finishing
- Independent drum drive for consistent traction
- Adjustable vibration settings for different material types
- Effective water spray system to prevent asphalt sticking
